How Seasonal Temperature Changes Affect Cooling Tower Fill Selection

Cooling towers operating through large seasonal temperature changes may face very different conditions throughout the year. Summer heat, winter temperatures, changing humidity, and variations in cooling demand can all influence how the tower operates. These conditions should be considered when selecting cooling tower fill for a new or upgraded system.

Summer and Winter Create Different Cooling Conditions

High summer temperatures can reduce the available cooling margin because the entering air is warmer. At the same time, lower winter temperatures can significantly change the tower's heat rejection requirements and may require attention to water distribution and operating control.

The fill works as part of this changing air-water system. Its geometry, material, and installation arrangement should therefore be considered against the conditions the tower is expected to experience throughout the year.

Temperature Is Not the Only Environmental Factor

Seasonal temperature should not be evaluated by itself. Ambient humidity, airflow, circulating-water temperature, water loading, and the tower's heat load can all change with the season.

For crosscurrent applications, the way the fill panel is installed can also influence how air and water move through the tower. A FULL-SIZE ADHESIVE & SUSPENSION MOUNT CROSSCURRENT FLOW PANEL can be evaluated according to the tower structure and expected operating conditions.

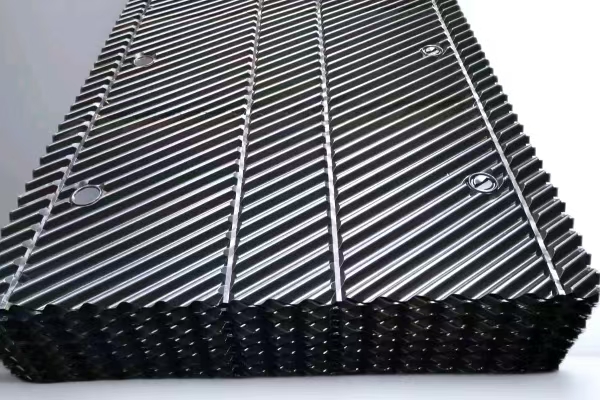

Cross Flow Fill Configuration

• Width: 1010mm
• Length: 2500mm
• Thickness: Customizable
• Pitch: 18mm
• Angle: 5.5°
• Material: PVC, CPVC, PP

Consider the Full Annual Operating Range

A fill that performs well under one design condition should still be evaluated against the wider operating range if the tower runs throughout the year. The expected minimum and maximum ambient temperatures, seasonal water temperatures, airflow, and cooling demand should all be included in the selection process.

Where the tower may experience different flow requirements or installation conditions, a configuration designed for more than one flow direction can also be evaluated. An 800/915MM DUAL-SIZE BIDIRECTIONAL FLOW HEAT CONDUCTION PANEL may be considered when its dimensions and flow arrangement are compatible with the project design.

Material Selection Should Reflect the Environment

Seasonal temperature changes can also influence material selection. PVC, CPVC, and PP have different operating characteristics, so the expected water temperature, chemical conditions, and long-term operating environment should be reviewed before the material is confirmed.

The objective is not simply to select a fill based on the highest or lowest temperature expected for a short period. The material and fill configuration should remain suitable across the tower's normal annual operating range.

Climate Conditions Can Affect Replacement Projects

For an existing cooling tower, changes in local climate or operating conditions may mean that the original fill specification is no longer the best match for current requirements. Before replacing the media, compare the original design conditions with the tower's actual operating environment.

This is particularly important when a cooling tower has been operating for many years or when its cooling load has changed. A replacement should be selected based on current conditions rather than simply reproducing the old specification.

Plan for the Full Operating Range

For seasonal projects, the fill material and configuration should be evaluated against the expected annual operating range rather than a single design condition.

Reviewing local climate conditions together with tower operating data, water temperature, airflow, and existing fill information can provide a more reliable basis for selecting the appropriate cooling tower fill.

Our team can review climate conditions and project operating requirements together to help determine a fill configuration suitable for the expected environmental conditions.
